Add a FortiGate in your virtual lab: from qcow to netlab by creating a Vagrant box
Want to test FortiGate in your virtual lab environment, and want to do without purchasing a license 💰? Discover how to spin up a FortiGate VM in your virtual lab, using the qcow image, Vagrant, and leveraging the power of netlab.
Introduction
Disclaimer
Many steps described in this blog post are based on the great work of Pete Crocker in his post: Creating a Fortinet VM for Libvirt/vagrant.
My goal here is to create an updated guide to deploy a FortiGate in a virtual lab environment, as the licensing has changed from the version 7.2.0. It’s mentioned in the containerlab instructions. You may still be able to obtain a version < 7.2.0 of the FortiGate, with a 15 day license, but I couldn’t find it on the Fortinet support portal anymore…
In this post, I’ll be using the version 7.4.8, to help you get started with setting up your virtual lab environment. It works just as well with the version 7.6.3, which is the latest version available at the time of writing.
Licensing
Before you start, please note that the free license provided by Fortinet is great for experiencing their FortiGate, but it has some restrictions, which could affect what you want to achieve.
You can find the documentation about the FortiGate VM free license on the Fortinet website.
Prerequisites
To follow this guide, we will assume:
Environment
You have an environment with KVM, Vagrant and the Vagrant plugin vagrant-libvirt already installed. You can check steps 1 and 2 of this post to prepare your environment.
FortiGate VM image
You have an account on the Fortinet support portal to download the FortiGate VM image, or an alternative way to obtain the fortios.qcow2 image.
netlab
You have a working installation of netlab, if not, check their installation guide.
Overview
There are only a few steps to follow in order to get the FortiGate VM ready for use in netlab. We will deep dive into each step, but here is a quick overview of what we will do:
- Image preparation
1. Download the FortiGate VM image from the Fortinet support portal, selecting the KVM option
2. Create the VM with
virt-install3. Configure the FortiGate VM with some basic settings: admin password, DHCP, DNS, and activate the permanent evaluation license
4. Keep note of the UUID of the VM, as it will be used in the netlab configuration
5. Shut down the VM
- Create the Vagrant box
1. Create a metadata file that will be used to create the Vagrant box
2. Download the box creation script from the vagrant-libvirt repository
3. Execute the box creation script to create the Vagrant box from the FortiGate VM qcow2 image
4. (Optional) Move the Vagrant box to a different location
5. Prepare the json file for the Vagrant box, so that it can be added to Vagrant with the correct version number
6. Add the box to Vagrant
7. Cleanup the FortiGate VM from libvirt, so that it can be used with netlab
- Create a lab using netlab
1. Create a topology file for netlab with the FortiGate VM and other devices
2. Start the lab with netlab
Image preparation
1. Download the FortiGate VM image
You can download the FortiGate VM image from the Fortinet support portal, you will need an account to access it.

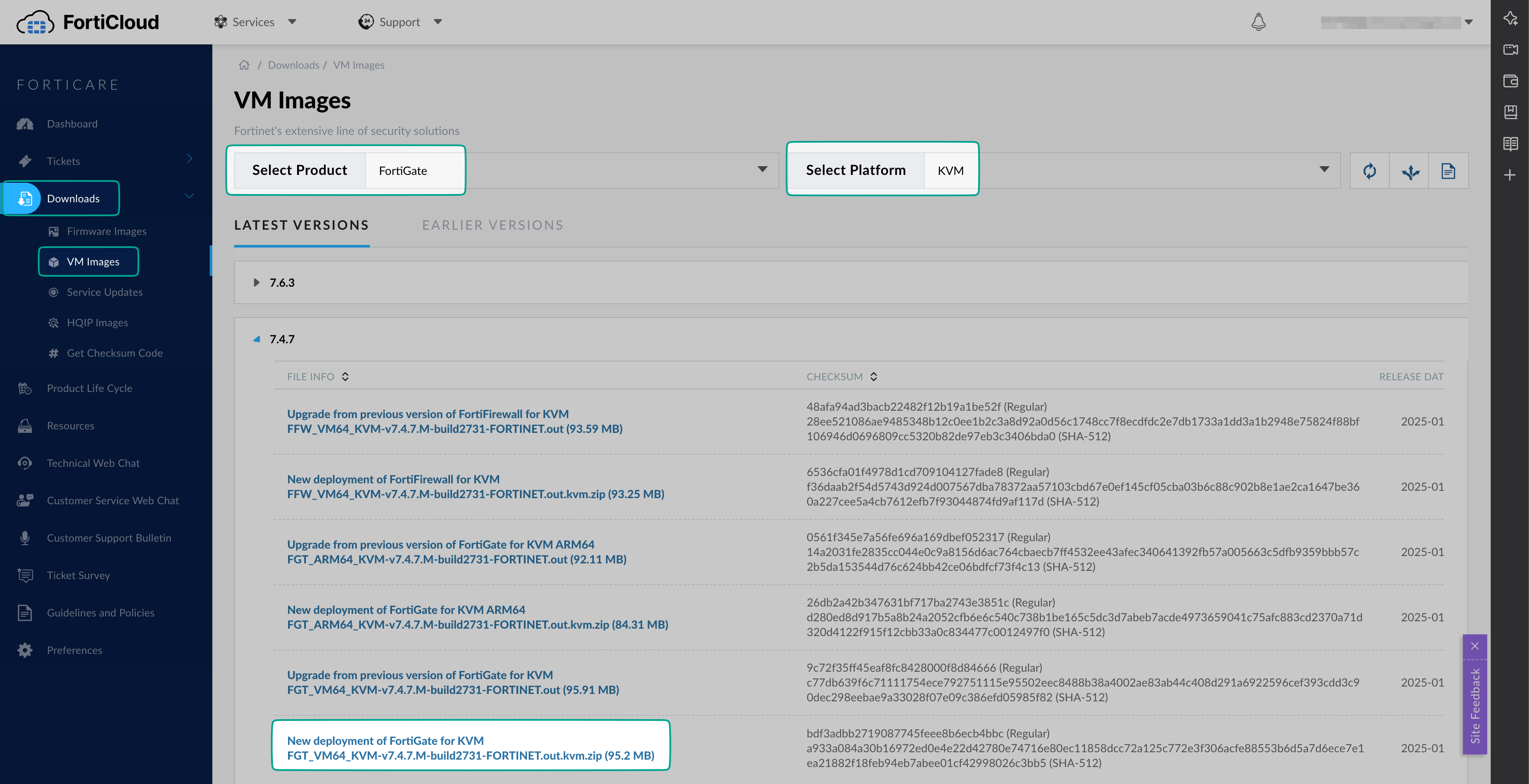

Once logged in, navigate to the Download section and select VM Images.
From there, it should show FortiGate for the Select Product, and select KVM for the Select Platform. Select the version of the FortiGate VM you want to use, and download the appropriate image for your architecture. Once you extract the downloaded archive, you’ll find the fortios.qcow2 file:
``` bash
unzip FGT_VM64_KVM-v7.4.8.M-build2731-FORTINET.out.kvm.zip
```
2. Create the VM with virt-install
We’ve already discussed how to use virt-install to create a VM in a previous post. Here, we will use it to create the FortiGate VM using the downloaded fortios.qcow2 image.
sudo virt-install \
--connect=qemu:///system \
--name="fortios748-vm" \
--os-type=generic \
--arch=x86_64 \
--cpu host \
--vcpus=1 \
--hvm \
--ram=2048 \
--disk path="/path/to/fortios.qcow2",bus="ide",format=qcow2 \
--network=network:"default",model="virtio" \
--graphics none \
--import
Starting install...
Connected to domain fortios748-vm
Escape character is ^]
System is starting...
Formatting shared data partition ... done!
Starting system maintenance...
Scanning /dev/sda1... (100%)
Scanning /dev/sda2... (100%)
Serial number is FGVMEV82Pxxxxxxx
FortiGate-VM64-KVM login:
3. Configure the FortiGate VM
- Log in with username
adminand empty password -
Set the new admin password to
adminFortiGate-VM64-KVM login: admin Password: You are forced to change your password. Please input a new password. New Password: Confirm Password: Welcome! FortiGate-VM64-KVM # -
Apply the default configuration below, which you can find in the output of the command
netlab libvirt config fortiosDefault configuration for the FortiGate VMconfig system admin edit "vagrant" set accprofile "super_admin" set ssh-public-key1 "ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA6NF8iallvQVp22WDkTkyrtvp9eWW6A8YVr+kz4TjGYe7gHzIw+niNltGEFHzD8+v1I2YJ6oXevct1YeS0o9HZyN1Q9qgCgzUFtdOKLv6IedplqoPkcmF0aYet2PkEDo3MlTBckFXPITAMzF8dJSIFo9D8HfdOV0IAdx4O7PtixWKn5y2hMNG0zQPyUecp4pzC6kivAIhyfHilFR61RGL+GPXQ2MWZWFYbAGjyiYJnAmCP3NOTd0jMZEnDkbUvxhMmBYSdETk1rRgm+R4LOzFUGaHqHDLKLX+FIPKcF96hrucXzcWyLbIbEgE98OHlnVYCzRdK8jlqm8tehUc9c9WhQ== vagrant insecure public key" set password ENC SH28SLSP20eURl8us/aceUFwjdJOggVKBfSQSP8eZi2dyoNferE+lgfmTIitbE= next end config system interface edit "port1" set vdom "root" set mode dhcp set allowaccess ping https ssh http fgfm next end config system dns set primary 1.1.1.1 end -
Activate the permanent evaluation license
Activate the permanent evaluation licenseexecute vm-license-options account-id <your-account-id> execute vm-license-options account-password <your-password> execute vm-licenseThis is the output you will get:
FortiGate-VM64-KVM # execute vm-license-options account-id [email protected] FortiGate-VM64-KVM # execute vm-license-options account-password <your-password> FortiGate-VM64-KVM # execute vm-license This VM is using the evaluation license. This license does not expire. Limitations of the Evaluation VM license include: 1.Support for low encryption operation only 2.Maximum of 1 CPU and 2GiB of memory 3.Maximum of three interfaces, firewall policies, and routes each 4.No FortiCare Support This operation will reboot the system ! Do you want to continue? (y/n)y Requesting FortiCare Trial license, proxy:(null) VM license install succeeded. Rebooting firewall. FortiGate-VM64-KVM # -

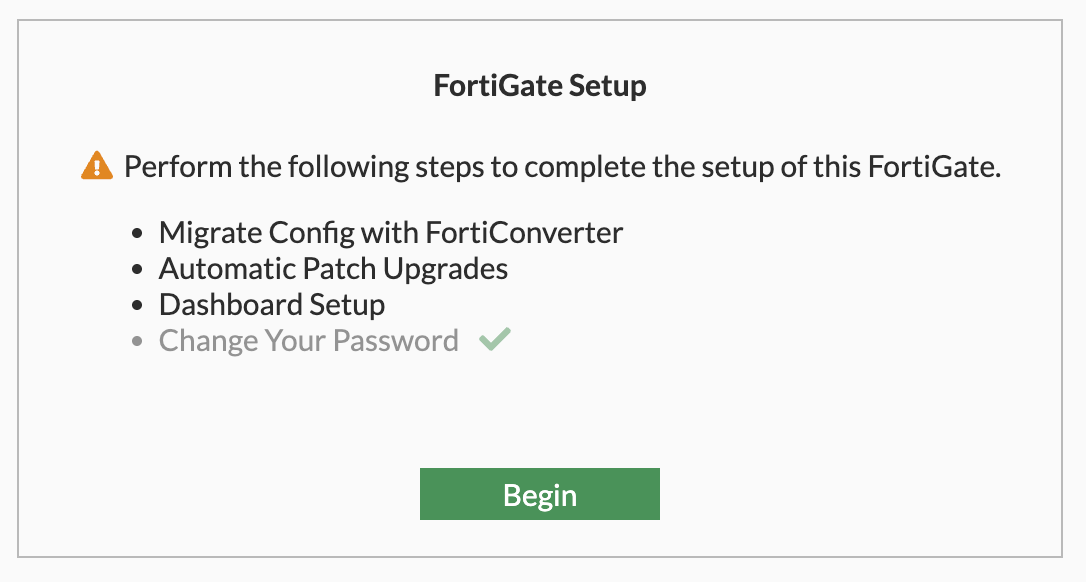

(Optional) Connect to the UI via a web browser and finish the setup
You can connect to the FortiGate VM via a web browser using the IP address assigned by DHCP. The default username is
adminand the password is the one you set in step 2. To find the IP address assigned by DHCP, you can use theget system interfacecommand in the FortiGate VM CLI:Get the IP address assigned by DHCPget system interface== [ port1 ] name: port1 mode: dhcp ip: 192.168.122.154 255.255.255.0 status: up netbios-forward: disable type: physical ring-rx: 0 ring-tx: 0 netflow-sampler: disable sflow-sampler: disable src-check: enable explicit-web-proxy: disable explicit-ftp-proxy: disable proxy-captive-portal: disable wccp: disable drop-overlapped-fragment: disable drop-fragment: disable mtu-override: disable [...]Once logged in, you should see a page like this one:
- Migrate Config with FortiConverter: the license does not allow you to use the FortiConverter, so you can skip this step. - Automatic Patch Upgrades: you can enable this option if you want to receive automatic updates for the FortiGate VM. - Dashboard Setup: I’ve used the optimal dashboard, but you can choose the option that suits you best.
4. Keep note of the UUID of the VM
We want to keep a record of the UUID. This ensures that netlab creates the FortiGate in the future with the same UUID. If the UUID changes, the license will not work properly, as it’s tied to both the UUID and the Serial Number of the VM.
More information on license activation can be found on this on this discussion page, and another article specifically details an issue with licensing due to a different UUID.
You can find the UUID of the VM by using the virsh command with the name of the VM you created with virt-install. In this case, the name is fortios748-vm.
virsh dominfo fortios748-vm | grep UUID
UUID: eb0603f4-0d27-43a5-b123-682dec123456
You can also find it directly on the FortiGate using the CLI, but it won’t have the format we want to use later in the topology file for netlab. The command to use is:
diagnose hardware sysinfo vm full
FGVMEV82Pxxxxxxx # diagnose hardware sysinfo vm full
UUID: eb0603f40d2743a5b123682dec123456
valid: 1
status: 1
code: 0
warn: 0
copy: 0
received: 4294939521
warning: 4294939521
recv: 202505182336
dup:
5. Shut down the VM
It is best to turn off the VM before creating the box, so it isn’t running when you create the box. Let’s do it from the FW CLI:
virsh console fortios748-vm
Connected to domain fortios748-vm
Escape character is ^]
FGVMEVT8CK0CM4B0 login: admin
Password:
Verifying password...
Welcome!
FGVMEVT8CK0CM4B0 #
execute shutdown
FGVMEVT8CK0CM4B0 # execute shutdown
This operation will shutdown the system !
Do you want to continue? (y/n)y
System is shutting down...
The system is going down NOW !!
FGVMEVT8CK0CM4B0 #
The system is halted.
Create the Vagrant box
This is the part strongly inspired by the steps described on Pete’s blog.
1. Create a metadata file that will be used to create the Vagrant box
In the same directory, create a file called metadata.json with the following contents:
echo '{"provider":"libvirt","format":"qcow2","virtual_size":1}' > metadata.json
2. Download the box creation script
The good folks who maintain the vagrant-libvirt plugin have a script that can be used to convert qcow2 images to a Vagrant box. Download the libvirt conversion script:
curl -O https://raw.githubusercontent.com/vagrant-libvirt/vagrant-libvirt/master/tools/create_box.sh
3. Execute the box creation script
bash create_box.sh fortios-7.4.8.qcow2
This will create a Vagrant box file called fortios-7.4.8.box in the current directory. This file is the image that will be used by Vagrant to spin up the FortiGate VM.
{2}
==> Creating box, tarring and gzipping
./metadata.json
./Vagrantfile
./box.img
Total bytes written: 282531840 (270MiB, 43MiB/s)
==> fortios-7.4.8.box created
==> You can now add the box:
==> 'vagrant box add fortios-7.4.8.box --name fortios-7.4.8'
4. (Optional) Move the Vagrant box to a different location
In my situation, all my Vagrant boxes are stored in /var/lib/libvirt/images/, so I will move the box file to that location. You can skip this step if you want to keep the box file in the current directory.
sudo cp fortios-7.4.8.box /var/lib/libvirt/images/
sudo chown libvirt-qemu:kvm /var/lib/libvirt/images/fortios-7.4.8.box
5. Prepare the json file for the Vagrant box
Create a metadata file called fortios.json so that the Vagrant box is added with the correct version number.
Note
The file path should be updated to the full path name of either your current working directory, or where you copied the box file to in the previous step.
cat << EOF > fortios.json
{
"name": "fortinet/fortios",
"description": "Fortinet FortiOS VM",
"versions": [
{
"version": "7.4.8",
"providers": [
{
"name": "libvirt",
"url": "file:///var/lib/libvirt/images/fortios-7.4.8.box"
}
]
}
]
}
EOF
6. Add the box to Vagrant
vagrant box add fortios.json
==> box: Loading metadata for box 'fortios.json'
box: URL: file:///home/sa/vendors/fortinet/fortinet-FGT-v7.4.8/fortios.json
==> box: Adding box 'fortinet/fortios' (v7.4.8) for provider: libvirt
box: Unpacking necessary files from: file:///var/lib/libvirt/images/fortios-7.4.8.box
==> box: Successfully added box 'fortinet/fortios' (v7.4.8) for 'libvirt'!
You can confirm that the box has been added by running the following command:
vagrant box list
cisco/iosv (libvirt, 15.6T)
cisco/nexus9300v (libvirt, 10.3.1.F)
cisco/nxos (libvirt, 9.2.2)
fortinet/fortios (libvirt, 7.4.8)
generic/ubuntu2004 (libvirt, 4.1.14)
juniper/vsrx3 (libvirt, 21.3R1.9)
vyos/current (libvirt, 20240817.00.20)
Check where the Vagrant boxes are stored
If you want to see the volumes created by Vagrant, you can run the following command:
sudo virsh vol-list --pool default
🥳 Great Job, we now have a Vagrant box ready to be used!
7. Cleanup
To ensure we can use the FortiGate VM with netlab, you first need to shut down the one currently running and remove its definition from libvirt. Use the following command:
sudo virsh destroy fortios748-vm
sudo virsh undefine fortios748-vm
Create a lab using netlab
1. Topology file
We need to tell netlab how we want to create our lab. The lab definition is done in a file called topology.yml. Here is an example of a lab with a FortiGate VM connected to two Arista cEOS devices. The Arista devices are created using containerlab, while the FortiGate VM uses the Vagrant box we just created.
---
message: "Lab with FortiGate"
defaults.devices.eos.clab.image: "ceos:4.29.9.1M"
defaults.devices.fortios.libvirt.image: "fortinet/fortios:7.4.8"
provider: libvirt
groups:
routers:
_auto_create: true
device: eos
provider: clab
module: [ ospf ]
members: [ r1, r2 ]
nodes:
fw1:
device: fortios
memory: 2048
module: [ ospf ]
libvirt.uuid: 2532d8da-0424-4645-aa63-27a1a8aead2a # 7.4.8
loopback: false
links:
- fw1:
d1:
- fw1:
d2:
2. Start the lab
To start the lab, you just have to use the following command:
netlab up
Now netlab will create the lab based on the topology.yml file you just created. Once the devices are running, it will use Ansible to configure them as described in the topology.yml file, automatically handling all the IP addressing, basic configuration and setting ospf between the devices.
┌──────────────────────────────────────────────────────────────────────────────────┐
│ CREATING configuration files │
└──────────────────────────────────────────────────────────────────────────────────┘
[CREATED] provider configuration file: Vagrantfile
[INFO] Creating configuration file for secondary provider clab
[CREATED] provider configuration file: clab-augment.yml
[CREATED] transformed topology dump in YAML format in netlab.snapshot.yml
[GROUPS] group_vars for all
[GROUPS] group_vars for modules
[GROUPS] group_vars for fortios
[HOSTS] host_vars for fw1
[GROUPS] group_vars for eos
[HOSTS] host_vars for r1
[HOSTS] host_vars for r2
[CREATED] minimized Ansible inventory hosts.yml
[CREATED] Ansible configuration file: ansible.cfg
┌──────────────────────────────────────────────────────────────────────────────────┐
│ CHECKING virtualization provider installation │
└──────────────────────────────────────────────────────────────────────────────────┘
[SUCCESS] libvirt installed and working correctly
[SUCCESS] clab installed and working correctly
┌──────────────────────────────────────────────────────────────────────────────────┐
│ STARTING libvirt nodes │
└──────────────────────────────────────────────────────────────────────────────────┘
[CREATED] creating libvirt management network vagrant-libvirt
provider libvirt: executing vagrant up --provider libvirt
Bringing machine 'fw1' up with 'libvirt' provider...
==> fw1: Checking if box 'fortinet/fortios' version '7.4.8' is up to date...
==> fw1: Creating image (snapshot of base box volume).
==> fw1: Creating domain with the following settings...
[...TRUNCATED...]
PLAY RECAP **********************************************************************************************************************************************************************************************************************
fw1 : ok=21 changed=4 unreachable=0 failed=0 skipped=11 rescued=0 ignored=0
r1 : ok=23 changed=3 unreachable=0 failed=0 skipped=6 rescued=0 ignored=0
r2 : ok=23 changed=3 unreachable=0 failed=0 skipped=6 rescued=0 ignored=0
[SUCCESS] Lab devices configured

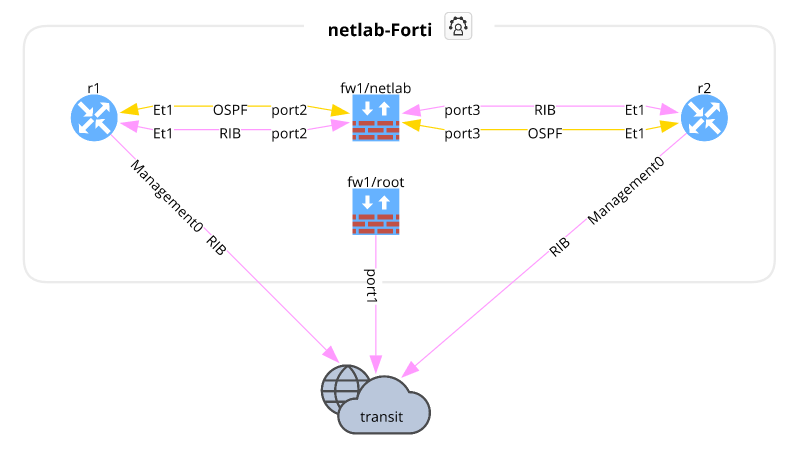

Et voilà! You should see the lab being created, with the FortiGate VM and the two Arista cEOS devices up and running, configured and ready to use.
OSPF not established…
You may notice that the OSPF is not established… What went wrong? Don’t worry, it can easily been fixed: this is due to MTU mismatch.
With version 7.4.8, the default MTU is 9500 on the FortiGate and 1500 for eos.
netlab does not yet support configuring the MTU on fortios, so you will need to do it manually. I am planning to add this functionality to netlab in the future, as a small contribution and also a way for me to learn in more detail how netlab works… As soon as it’s done, the default should be 1500, and the OSPF will be established automatically.
but fine with 7.6.3
Weirdly, with 7.6.3, the MTU is set to 1500 by default 🤔. I don’t get it, but at least you won’t have this problem. Yay!
Conclusion
Alright, we’ve made it! We took that official FortiGate qcow2 image, navigated the initial setup hurdles, and successfully transformed it into a Vagrant box ready for action in your netlab environments.
We walked through the key steps – from downloading the image and getting the VM configured, to building the Vagrant box itself, and finally spinning it up in a simple lab topology alongside some other devices like Arista cEOS.
With this setup in place, you’ve now got the power to integrate a FortiGate firewall into your network lab, opening up possibilities for testing configurations, security policies, and validating designs.
Netlab is a powerful tool with tons of potential, and I’m looking forward to sharing more of what I learn and explore with it in future posts. Thanks so much for reading, and I truly hope this guide was helpful for your lab setups!
If you have any questions or suggestions, feel free to reach out. Happy labbing! 🚀
